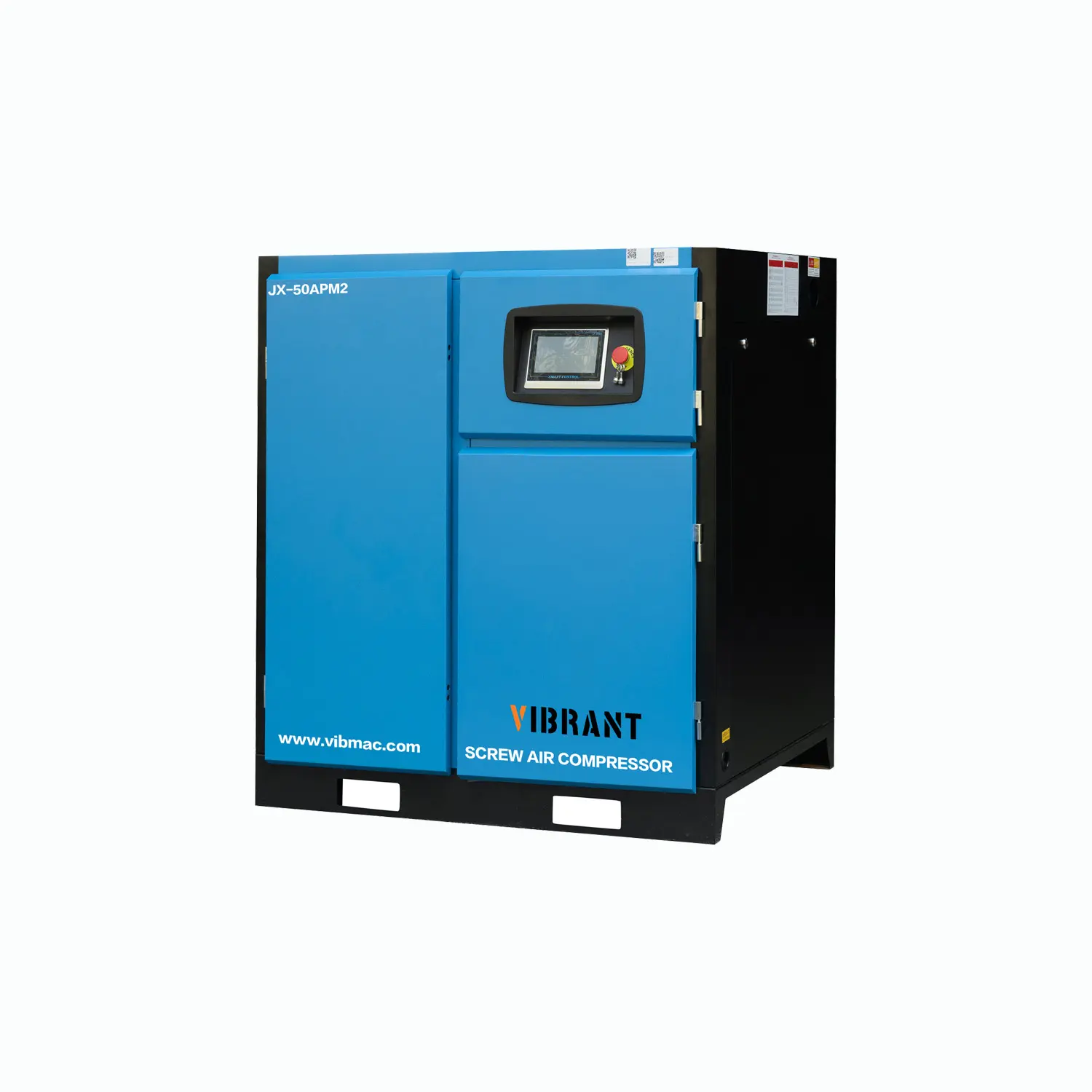

Two-Stage Air Compressor
The Two-Stage Air Compressor – JX 50APM 2 is among the air compressors that enjoy high efficiency and is privately built for especially complex industries. Another remarkable characteristic of this strong unit is flow to ensure that other modes of the device will provide standard and strong pressure of air. This is because it has two-stage compression that makes it possible to attain high pressure at equal times of making reasonable usage of energies known for the job.
- Pressure(MPa): 0.6/0.7/0.8/1.0/1.3
- FAD (m³/min): 8.5/7.5/6.9/6.3/5.4
- Power(KW/HP): 37/50
- Weigt(kg): 850
- Pipe Diameter: G1 1/a2
- Dimension(mm): 1400*1100*1450
- Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
-
Energy-efficient -
Stable operation -
Low noise -
Intelligent
Get a quote now

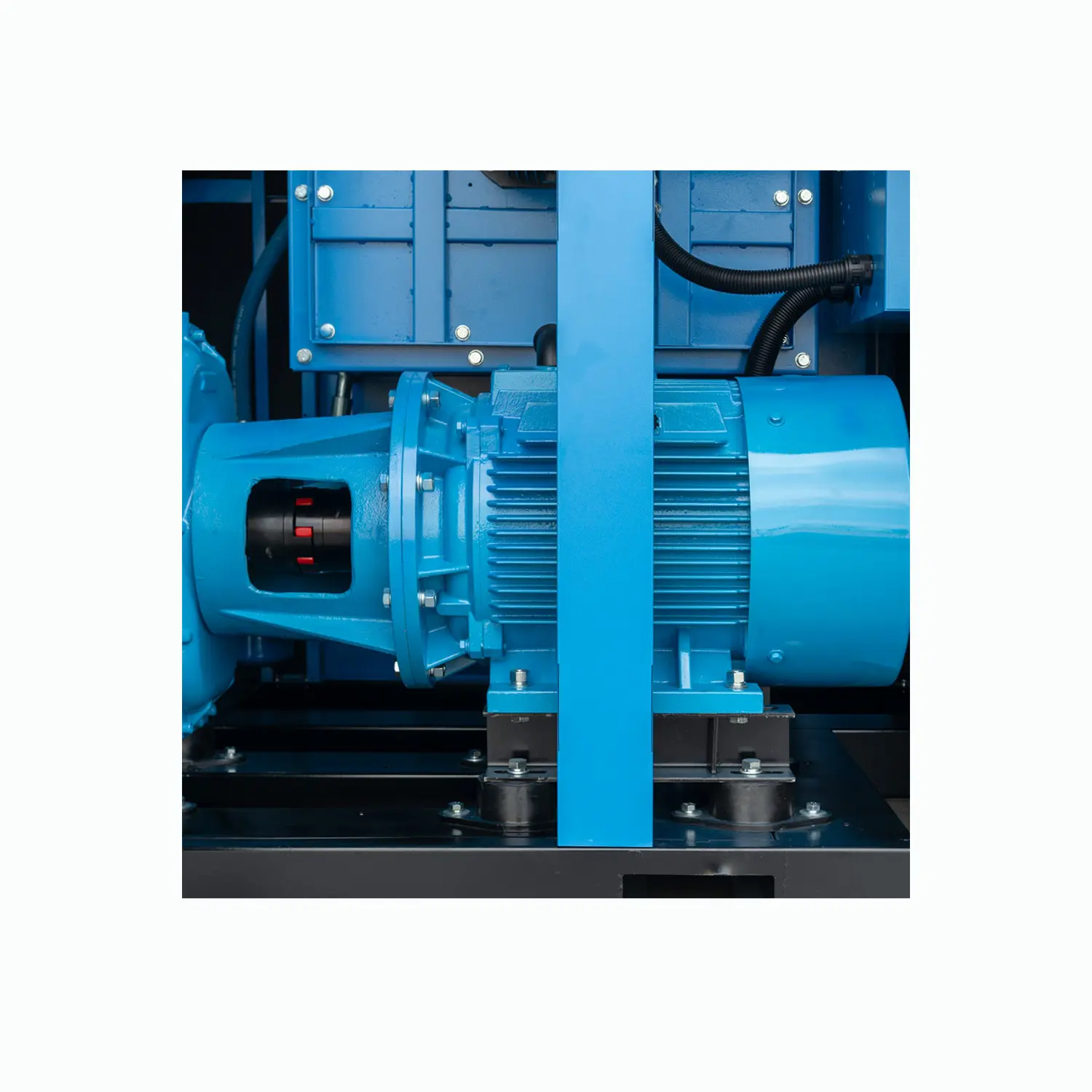

Especially, it has a variable exhaust pressure of between 08 and 1.3 MPa, depending on the demand of work. Having a Free Air Delivery (FAD) of up to 8.5m³/min this compressor will keep supplying pressurized air to numerous uses or operations. It has some stiffness in its design and more to the point, it has a delivery weight of 850 kg; the dimensions of this equipment are 1400mm x 1100 mm x 1450mm and thus suitable for use in various industries. It is equipped with a highly effective 37 kW (50 hp) engine which makes this equipment well-suited to perform highly demanding tasks.
- Two-Stage Compression: Vilishes energy at the same time as the improvement in the pressure rating, and efficiency of the assembly as compared to the previous model.
- Variable Pressure Options: They vary in pressure ranging from 0.6 MPa for up to 1.3 MPa depending on the user’s preference.
- High Free Air Delivery: The maximum fresh air demand of the system is kept at 8.5 m³/min to ensure that large movement will be applied.
- Sturdy Construction: Intended for durability, and strong enough for rigorous use appropriate for companies to enhance effectiveness.
- Compact Footprint: The size of the compressor is still small even though the power is heavy, so it is very easy to install and transport too.

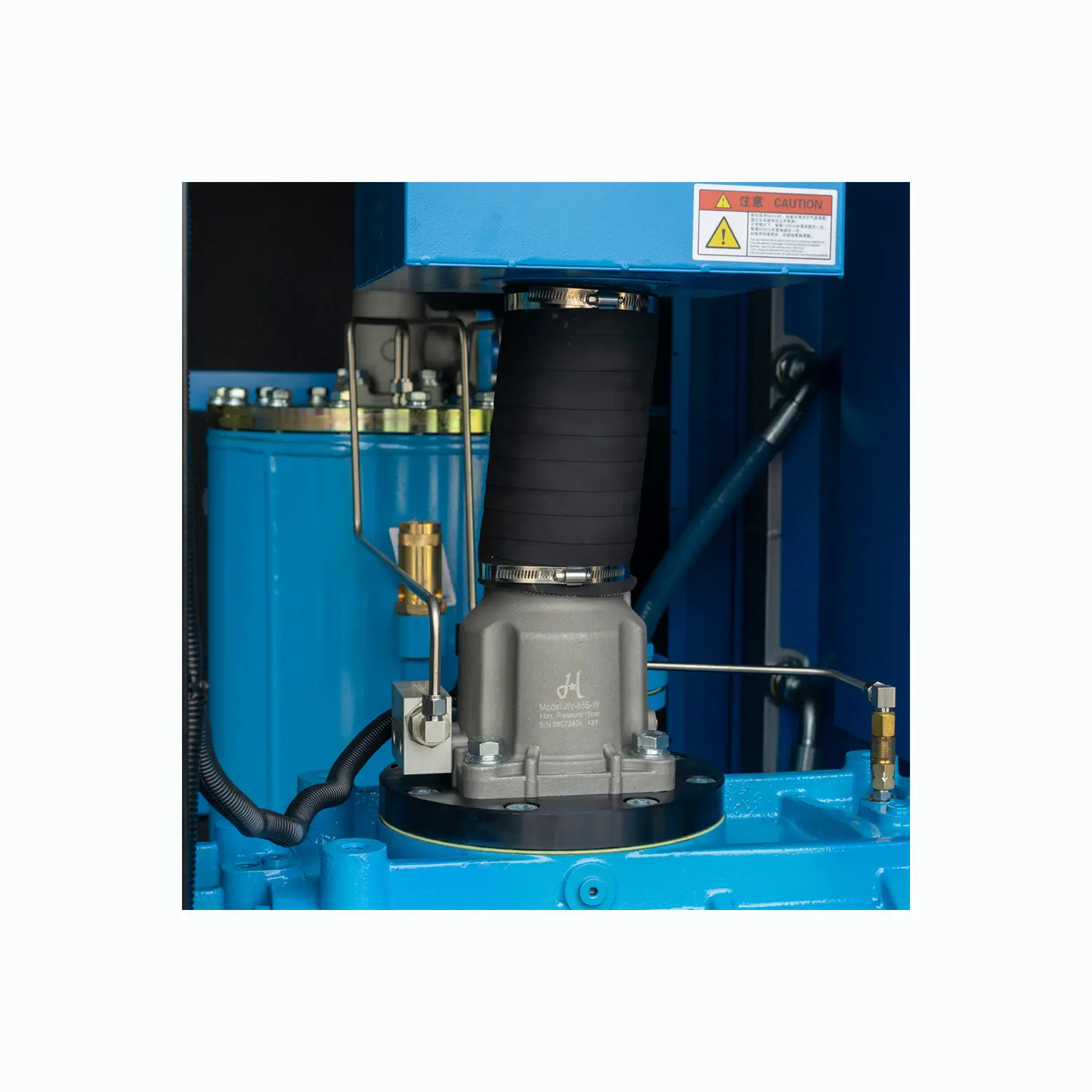

- Compressor Unit: The fundamental configuration of the system aiming at appropriate air compression and large Quantity deliverance has been designed and developed.

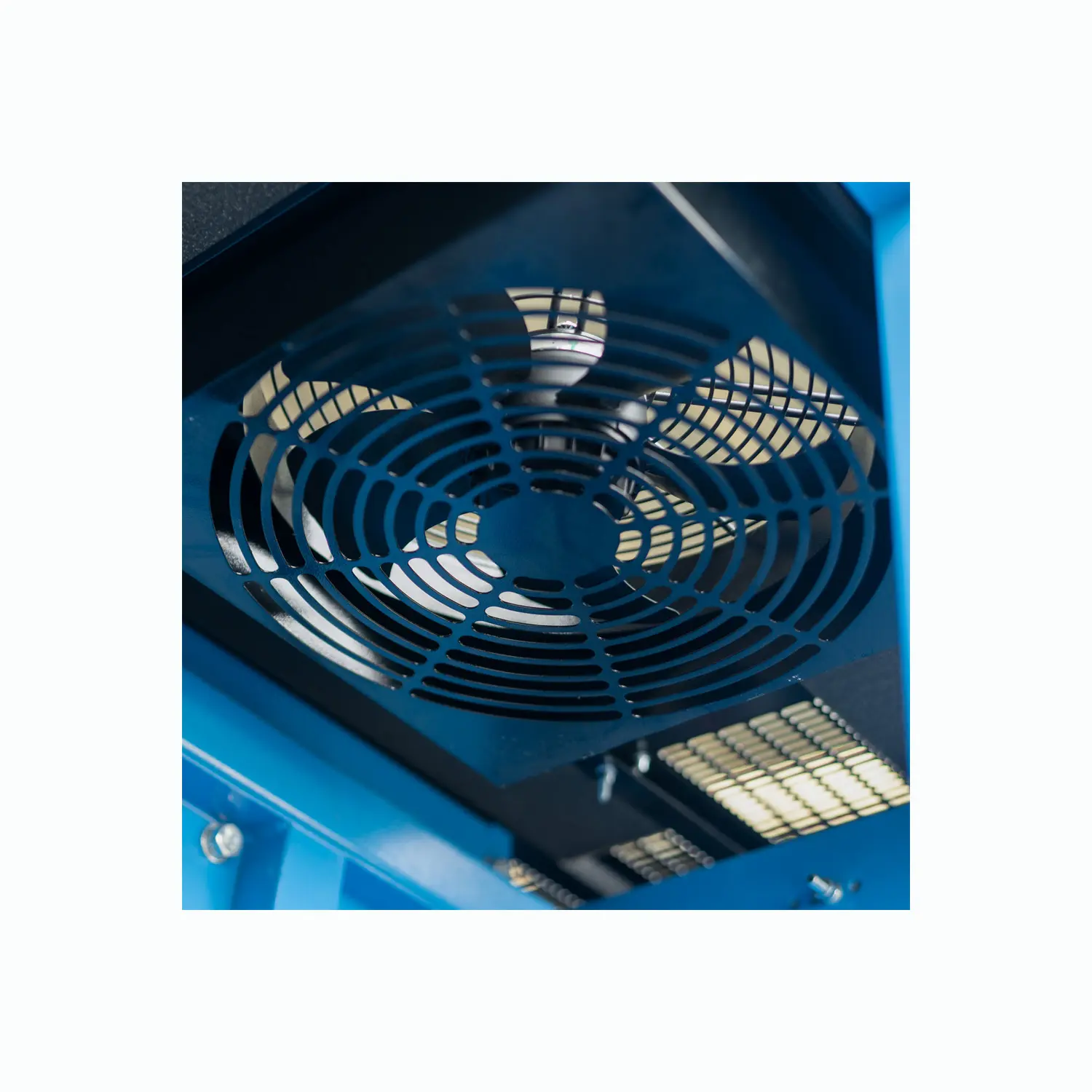

- Cooling System: AVoids overloading during the periods that the device is frequently used allowing the compressor to perform as usually required when on stress.
- Air Filtration System: This reduces the entry of debris into the compressor, this therefore increases the life cycle and operation of the compressor.
- Pressure Control System: Allows an exact fine-tuning of the pressure ranges to meet the requirements of certain applications.
- Routine Maintenance: For optimal performance and longevity, they need normal health checks by an expert and servicing.
- Monitor Pressure Levels: In detail, they should keep their eyes on the pressure setting of that kind of pressure gauges in order to meet operating conditions as well as safety requirements.
- Check Connections and Hoses: Very often inspect all the connection and all hoses for signs of leakage and wearing.
- Manufacturing Facilities: Provides a constant and high-pressure air supply for applications relevant to pneumatic tools, automation, and production equipment.
- Construction Sites: Applicable for supplying power to the air-operated tools; enhancing the performance of construction & other stressful activities.
- Oil and Gas Industry: This supports other operations that demand the provision of high-pressure air to other tools and such gadgets.
- Mining Operations: The supply of compressed air needed for the operation of drilling, excavation, and other mining appliances that need volume and pressure.
-
Pressure(MPa): 0.6/0.7/0.8/1.0/1.3 -
FAD (m³/min): 4.2/3.8/3.4/2.8
-
Power(KW/HP): 18.5/25
-
Weigt(kg): 550
-
Pipe Diameter: G1
-
Dimension(mm): 1300*980*1220
-
Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
VIEW MORE
-
Pressure(MPa): 0.6/0.7/0.8/1.0/1.3
-
FAD (m³/min): 10.7/10/9.5/8/6.8
-
Power(KW/HP): 45/60
-
Weigt(kg): 1300
-
Pipe Diameter: G2
-
Dimension(mm): 1500*1230*1550
-
Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
VIEW MORE
-
Pressure(MPa): 0.6/0.7/0.8/1.0/1.3
-
FAD (m³/min): 13.8/13/12.5/9.5/8
-
Power(KW/HP): 55/75
-
Weigt(kg): 1700
-
Pipe Diameter: G2 1/2
-
Dimension(mm): 2100*1440*1650
-
Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
VIEW MORE
-
Pressure(MPa): 0.6/0.7/0.8/1.0/1.3
-
FAD (m³/min): 18/15.5/15.2/13/11
-
Power(KW/HP): 75/100
-
Weigt(kg): 1800
-
Pipe Diameter: G2 1/2
-
Dimension(mm): 2100*1440*1650
-
Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
VIEW MORE
-
Pressure(MPa): 0.8~1.3
-
Exhaust Volume(m³/min): 12.2~9.1
-
Power(KW/HP): 75/100
VIEW MORE
-
Pressure(MPa): 0.7~1.3
-
Exhaust Volume(m³/min): 1.7~1.0
-
Power(KW/HP): 11/15
VIEW MORE
-
Pressure(MPa): 1.55
-
FAD (m³/min): 0.6
-
Power(KW/HP): 7.5/ 10
VIEW MORE
-
Pressure(MPa): 1.55
-
FAD (m³/min): 0.6
-
Power(KW/HP): 7.5/ 10
VIEW MORE
