Automotive Belt Driven Air Compressor
Automotive Belt Driven Air Compressor in automobile is commonly fixed with a typical belt drive to give consistent pressure with compressed air output. It has longer service life and lower O&M costs to provide you with the best of both worlds – efficiency with stability. This product has obtained customer acceptance locally and overseas making it the customer’s preferred product.

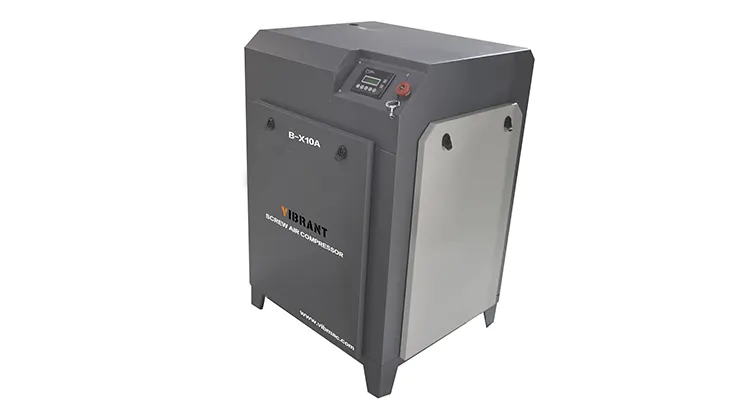

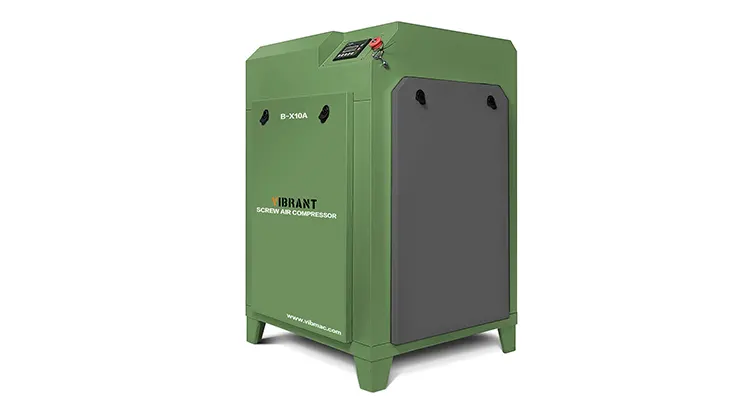

B-X10A
- Pressure(MPa): 0.8
- Exhaust Volume(m³/min): 1.1
- Power(KW/HP): 7.5/10
- Dimension(mm): 750*700*930
- Drive Mode: Belt
- Weigt(kg): 170
- Pipe Diameter: G1/2
- Startup Mode: Direct Start
- Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
-
Energy-efficient
-
Stable operation
-
Low noise
-
Intelligent
Get a quote now
Description
Application
Parameter Table
Evaluate
Details of B-X10A-10HP-7.5KW
Our B-X10A-10HP-7.5KW belt driven screw air compressor without tank has the traditional belt drive, stable output of compressed air, longer service life, and relatively lower O&M cost.
Product Features
- Stable and reliable: Standard operation mode and stable speed design make the compressor run for a long time continuously and it is very suitable for a high-density environment.

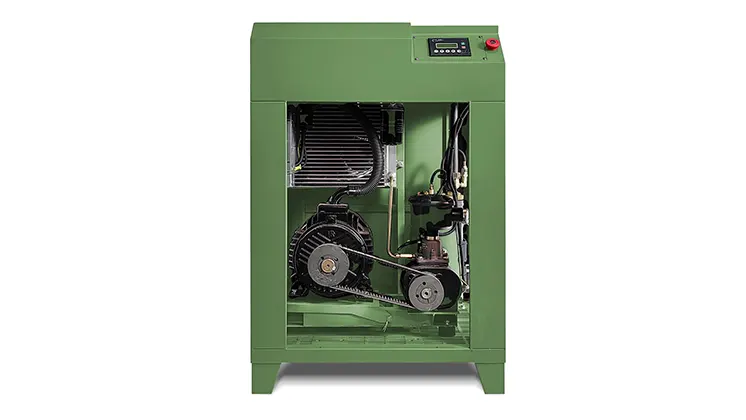

- Belt drive system: It uses conventional high-standard belts and pulleys to enhance transmission efficiency and can fully function at low vibrations and low noise.
- Easy maintenance: The belt drive system is simple, replacement and maintenance work are easy and fast; the maintenance time and cost of the equipment are decreased greatly.
- Lower price: Belt-drive air compressors are cheaper than direct-drive air compressors.
- Flexible installation: The distance between the motor and compressor can be changed, which is advantageous for installing in a small place.
Main Parts and Wear Parts
- Air end: Newest generation of asymmetrical profile line and high-end bearing arrangement, minimum air return loss, long working output, highly efficient, low noise level, and low vibration levels.
- Motor: Over the last decade, fixed-speed motors with long life and efficiency.
- Wear parts: Mainly the air filter, oil filter, oil-air separator, etc., components that have to be changed from time to time to ensure optimum performance.
Factory Equipment
Precautions
- Daily inspection: In terms of monitoring information flow, involves checking the temperature, pressure, and current of the operating equipment daily, as well as checking the bearings daily to ensure they are in proper operating condition.
- Regular replacement of wearing parts: Change the oil filter, air filter, and oil/air separator as we have suggested below.
- Lubricating oil replacement: The screw head requires good lubrication and cooling and there is a need to replace the lubricating oil frequently.
- System cleaning: Wash the interiors as well as the exterior part of the air compressor constantly to avoid the collection of dust and other undesirable particles.
Application Scenario
- Manufacturing production line: Applicable in automobile assembly, manufacture of plastics and rubber products, metalworking, and any other need.
- Industrial spraying: Supply high-quality, consistent, and clean compressed air to spray guns.
- Packaging and Printing: Operate packaging line driven by software control and printing machines.
- Engineering and construction: Operate many pneumatic tools.
Parameter Table
Item | Technical Parameter | |
Unit Model | B-X10A-10HP-7.5KW | |
Pressure(MPa) | 0.8 | |
FAD(m³/min) | 1.1 | |
Power(kW/hp) | 7.5/ 10 | |
Dimension(mm) | 750*700*930 | |
Weight(Kg) | 170 | |
Pipe Diameter | G1/2 | |
Power Supply | 380V/50HZ, available for customization(110V~480V,50HZ/60HZ) |
