Two Stage Air Compressors
Allow the JX-125APM2 Two-Stage Air Compressor to present the finest two-step device of the sturdy industry for tough workloads. Equipped with a powerful 125 HP (90 kW engine), this air compressor is built to perform in a multitude of pressure settings and is ideal for tough applications. Here, it incorporates a two-stage compression system that guarantees efficiency and productivity under challenging operating conditions.

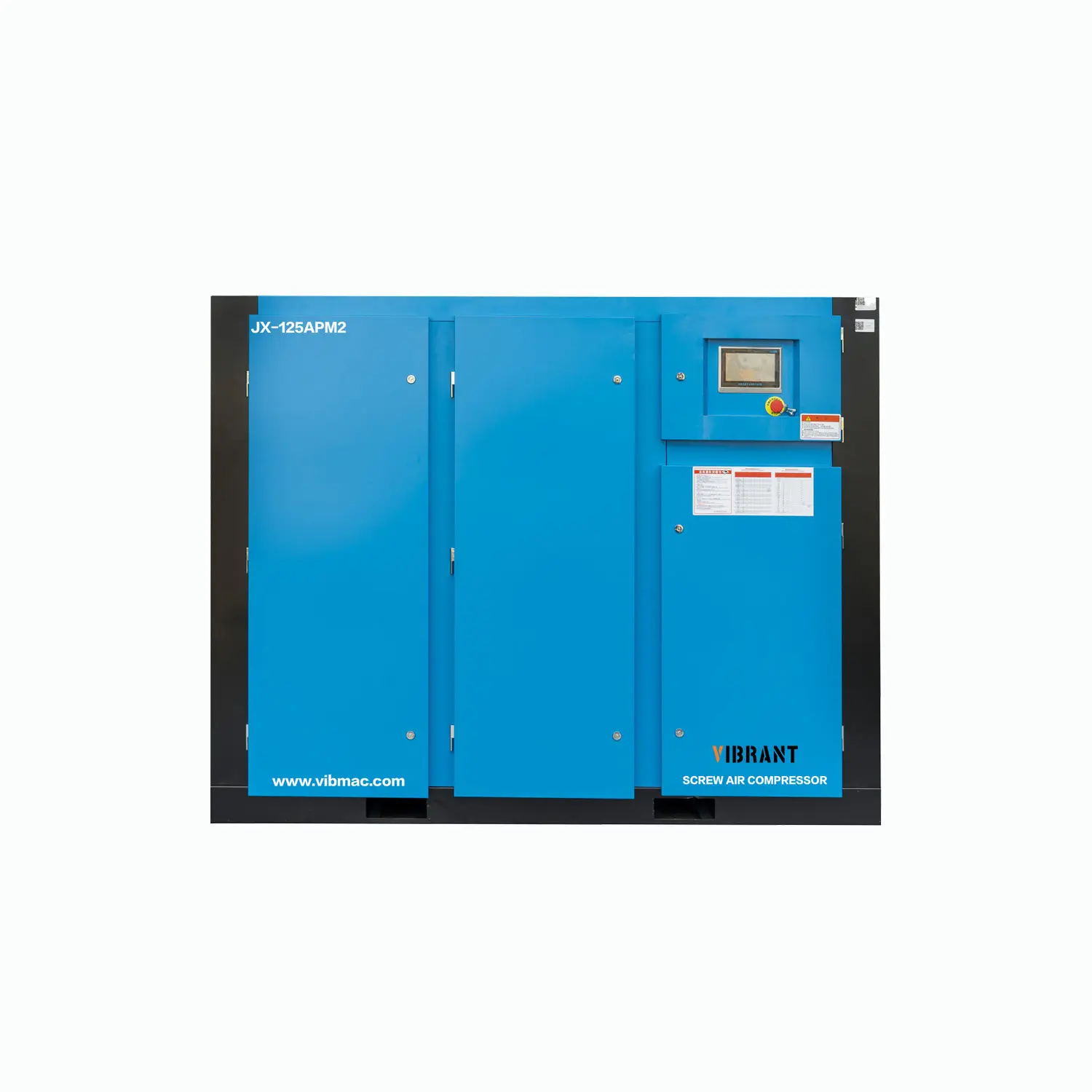

JX-125APM2
- Pressure(MPa): 0.6/0.7/0.8/1.0/1.3
- FAD (m³/min): 22/20.5/19.5/16.5/14
- Power(KW/HP): 90/125
- Weigt(kg): 2400
- Pipe Diameter: DN65
- Dimension(mm): 2450*1700*1760
- Power Supply: 380V/50HZ, available for customization(110V~480V,50HZ/60HZ)
-
Energy-efficient -
Stable operation -
Low noise -
Intelligent
Get a quote now
Details of JX-125APM2
JX series adopted new energy-saving technology, the operating pressure range of JX-125APM2 is 0.6 MPa to 1.3 MPa (87 to 189 psi) and it provides Free Air Delivery (FAD) from 14 to 22 m³/min based on the set pressure. The size of the unit is reasonable regarding its power, the dimensions are 2450 mm x 1700 mm x 1760 mm, and it weighs 2400 Kg. It is fitted with a DN65 outlet pipe diameter to facilitate the throughflow of air and easy interconnection of the unit to most industries.
Product Features
- Two-Stage Compression: Purpose-built for improved performance and durability with a higher air delivery rate at a lower power rate.
- High Air Delivery: Able to produce air up to 22 m³/min at 0.6 MPa to serve various large-scale industrial purposes.
- Pressure Versatility: It has a pressure range of 87 psi – 189 psi which makes it suitable for various working applications.
- Durable Construction: Designed for the conditions where machinery does not stop its work permanently day and night.
- Compact Size: However, the unit has a high throughput capacity though its dimensions are relatively large 2450 mm x 1700 mm x 1760 mm.
Main Parts and Wear Parts
- Compressor Unit: The pneumatic power engine is the central component of the system; it compresses the air with the highest possible efficiency.
- Air Filters: Required to guarantee that fresh air is filtered before it enters the car and to shield inside parts from dirt.
- Lubrication System: Can store sufficient lubricant to provide uninterjected smooth operation to reduce wear.
- Pressure Switches and Valves: Points that control and measure system pressure for normal and secure operation.
- Hoses and Fittings: It is important to inspect hoses and fittings frequently to avoid probable leaking and guaranteeing efficiency.
Precautions
- Routine Maintenance: Filters, lubricating levels as well as other wearing parts should also be checked from time to time to maximize the performance of the machinery.
- Ensure Proper Ventilation: Store the unit in a well-aerated environment to reduce heat production when in operation.
- Check Power Supply: Make sure that the electrical voltage and frequency supplied to the compressor are not beyond their recommended ratings to avoid such cases.
- Monitor Pressure Levels: They need to monitor and manage the operating pressures so as not to overwhelm this important infrastructure.
Customer Reviews
Application Scenario
- Manufacturing Plants: Thought to be suitable for extensive large-scale applications for instance factories that need regular high flow rate of air for pneumatic instruments.
- Automotive and Aerospace Industries: Ideal for operating air wedges used in working on assembling lines and maintenance generalers.
- Construction Sites: Delivers consistent, high-pressure compressed air that is required for operations of other equipment and tools.
- Energy Sector: Described for the oil and gas operations that need high air delivery for drilling or machinery.
- HVAC Systems: Can be applied in large flows in heating, ventilating air conditioning systems, and whenever large volumes of compressed air are required.
